How to Pattern a Bias Skirt for Pleating

This post is meant to be read after last weeks post titled Bias Skirts 101.

Many of our clients ask us if they cut the fabric will the pleating be cheaper.  Theoretically, yes it is cheaper but we usually find they cut the fabric wrong or crooked which actually ends up taking more time to pleat or compromises quality…and we hate poor quality pleating :-)  So,  in this post I will show you how to make a quick pattern for a bias circle skirt so you can get your pleats perfect.

You will need:

- a large table to draft a pattern and cut your fabric. (Minimum 30 x 60 in )

- a large sheet of paper, preferably a roll or pattern paper.

- tape measure

- a 36in. long ruler

- An awl or a nail will do.

- a pencil

- scissors

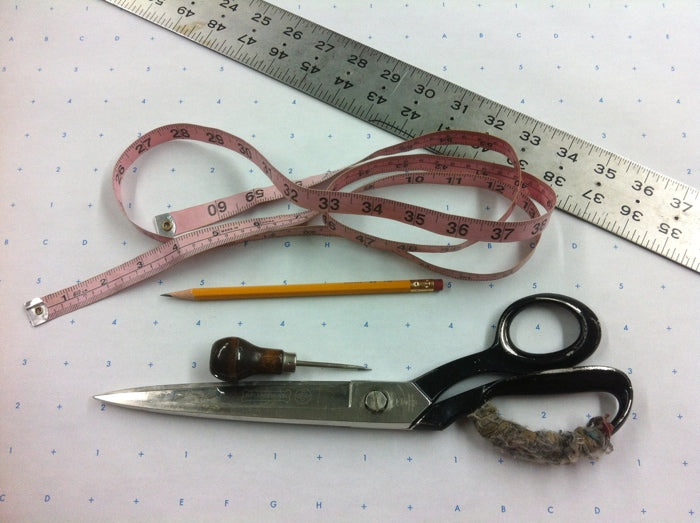

tape measure, awl, ruler, pencil, scissors and pattern paper. All the supplies needed to pattern a bias skirt.



The pattern we will make will be for our short sunburst accordion patterns.  Our short patterns max out at 24 inches so that plus 6 inches to the center of the circle equals 30 inches total.  The six inches is at the waist, if that doesn’t make sense now don’t worry.  You will see what I am talking about later…and if your still confused just call us and ask us what you need to do.  The steps in this pattern can be applied to any skirt length.



Step 1: Spread your pattern paper on the table at least 62 inches  long since or circle diameter will be 60 inches.  Grab your ruler and make a line 1 inch up from the bottom edge of the pattern paper.  The entire length of the 62 inches.

Step 1, draw a line 1 inch on pattern paper



Step 2:  Now make a notch in the center of your line.  If you made your line 62 inches then mark the center at 31 inches.



step 2, how to make a skirt pattern, international pleating



Step 3:  Now from the center notch you just made draw a line 90 degrees (perpendicular) to the first line you made in step 1.



step 3, making a bias skirt pattern, draw 90 degree line



This is what you should have so far.  A t-shape, this will be the center of your circle.



step 4a, center of pattern, center of bias skirt



Step 4:  Now grab your awl or push pin, a tape measure and a pencil.  Put a pin inside the hole of the eyelet at the end of the tape measure and pin it to the center of your pattern.  Make sure it is tight enough to hold the tape measure in place but not too tight as to restrict it from moving freely.



step 4, pin the center of the circle bias skirt, sunburst pleating pattern



Step 5:   Ok.  This step can be skipped if you are ordering just a sample of you are not certain of the customers waist.  For the sake of this lesson we are drawing a 6 inch radius which is probably for a size 2.  I have more info regarding this step in the Bias Skirt Fabric Calculator.  We recommend not cutting out the waist area unless you are going into production with at least 2 dozen skirts.  It it easier to just cut it after pleating to your desired waist measurement and it is easier to store the pleating without damaging them if you decide to hang them.  This area alone is worth one or two blog posts so I will address that in the future.  In the meantime, follow along but don’t cut it out.  If you are not certain what you want to do just call, or post a comment or email us.  We are more than happy to answer your questions.  Now…moving right along.   Put the pencil at 6 inch along the tape and hold them together then draw a half circle around the center of the circle.



step 5, draw the waist for a bias circle skirt



When you are done you should have the following.  A small half circle with a diameter of 12 inches or a radius of 6 inches.

step 5a, center waist of half circle pleated skirt pattern



Step 6:  Now we will draw the hem of the skirt.  As I mentioned earlier our short pattern is 24 inches long.  When you add that to the 6 inche line we just made for the waist you get 30 inches to the center of your circle.  So grab the pencil again and hold it at 30 inches and draw a nice big circle.  Try to make a nice circle by holding the pencil in exactly the same tangent as you draw the circle.



step 6, drawing the hem of a half circle skirt



This is what you should have so far.  Two nice half circles, one small one for the waist and one big one for the hem of the skirt.



step 6a, drawing of hem for half of a full bias circle skirt



Step 7:   Now we have to find the bias grain line.  To do this we need to measure exactly a quarter of the circle and get a center measurement.  Measure from the top center of the half circle to one side of the patter.  We measured 42 inches.



step 7, finding the bias grain line for the bias skirt pattern



Since we measured 42 inches we are marking 21 inches for the center.  We are basically dividing the quater of the circle.



step 7a, make notch a quarter circle for bias grain of skirt pattern



Step 8:   Now take a long ruler and draw a line through your new mark to the center point of your circle.



step 8, draw bias grain line for pleated bias pattern



Step 9:  Now we need a notch at the hem of the line you just made and a notch at the center (top) of your patter.



step 9, draw a notch at hem of pattern, how to make a bias skirt pattern



Also, we need notches along the waist at bias gain line and at the center.  However, remember…for samples it is not important to cut out the waist.  The SUPER MOST important thing is a notch at the center of your circle.  If you look at the pic below is circled in pink.



Step 9a, notch at waist of circle skirt



So lets take another look at what you should have so far.  Below I noted the grain lines on the patter with cross grain, straight grain and bias grain.



pleating pattern with grain line, bias grain line and cross grain.



Thats basically it.  I know we only did half so you can either fold the pattern in half  and cut it out to true the pattern symmetrically or you can just repeat the same process on the other side to get the grain line.  So just to recap the most important thing for you do send us for pleating is a half circle with four notches.  Two center notches and two on the bias grain at the hem.  Check the photo below.





step 9b, completed pattern with notches for sunburst pleated bias skirt



Just in case you want to cut out the waist measurement as well make sure you add the notches at the waist line on the bias grain.   If you have ever worked with another pleater you might be asking yourself why do I need all these notches?  I never needed them before.  The answer is so we can precisely control the grain line while we pleat to give you a perfect product so you wont have any curling or nightmare seam line.  Just check my other post for more info regarding poor quality pleating.

One last thing to note, this pattern is made for fabrics with relatively minimal stretch.  For fabrics like chiffon that get longer on the bais grain we need to make some adjustment to the pattern.  I will show you how to deal with that later.  Hope that was clear enough and not too confusing.  Next post should be about cutting out the pattern.





, , , , ,
